What Factors Make MiniTec Aluminum Framing Ideal for Clean Integration of Pneumatic Lines

A clean and efficient pneumatic setup depends on more than the quality of its air components. The framing that holds and organizes those lines determines how easy it is to maintain, expand, and troubleshoot. MiniTec Aluminum Framing has become a preferred choice for this purpose, offering structural precision and flexibility that fit the needs of modern automated systems.

Smooth Channel Interiors That Keep Lines Neatly Routed

MiniTec extruded aluminum framing features channels with smooth interior surfaces that help guide pneumatic tubing without snags or abrasions. These channels provide a controlled path for air lines, preventing tangling or unnecessary bends that can affect air pressure consistency. The design supports clean routing while keeping the appearance uncluttered and accessible for technicians. This feature also makes cleaning and maintenance faster. Dust and residue tend to collect around rough edges or exposed brackets, but the streamlined channel interiors of MiniTec Aluminum Framing keep surfaces easier to wipe down and inspect—an essential quality in manufacturing and laboratory environments that require precision airflow and minimal contamination.

Ample Extrusion Cavities for Concealed Air Tubing

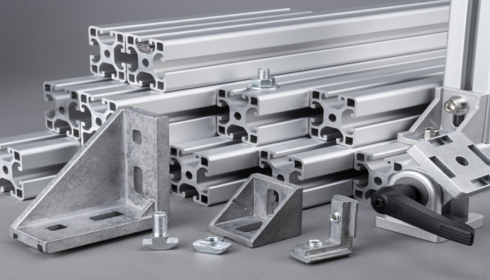

The modular aluminum framing system from MiniTec includes deep extrusion cavities designed to conceal pneumatic lines. These interior spaces allow tubing to run through the frame itself rather than across exposed surfaces. It gives engineers the freedom to hide air lines within the structure, protecting them from wear while maintaining a sleek, professional look. This internal routing also enhances safety by keeping tubing away from moving machine parts. Technicians can easily trace and access the lines through removable panels without disrupting equipment. The MiniTec aluminum frame kit provides various profile sizes that can accommodate complex pneumatic systems with multiple concealed air paths.

Stable Mounting Points for Clamps and Fittings

Each section of MiniTec aluminum framing material is engineered with stable mounting slots that allow for precise attachment of pneumatic clamps, valves, and fittings. The rigidity of the frame ensures that mounted components remain steady, even under vibration or frequent use. These mounting points eliminate the need for external brackets, reducing clutter and improving long-term reliability.

Because the system uses standardized fastening hardware, modifying or replacing pneumatic accessories takes less time. The consistent spacing and alignment make it easier for technicians to keep tubing organized along defined routes. This structure-based mounting approach also reduces strain on connection points, extending the life of both tubing and fittings.

Lightweight Profiles That Reduce Strain on Suspended Lines

MiniTec Aluminum Framing stands out for its strength-to-weight ratio. Its lightweight profiles support suspended pneumatic lines without adding unnecessary bulk or downward pull on connectors. This balance is particularly valuable in automated systems or conveyor frameworks where overhead tubing runs are common.

The reduced weight makes installation safer and simpler. Technicians can handle longer segments with minimal lifting equipment while maintaining structural integrity. Over time, this lighter framework minimizes wear on suspension mounts and lowers maintenance costs, all while supporting reliable airflow performance.

Clean Surface Finishes Suited for Controlled Environments

The anodized finish on MiniTec extruded aluminum framing provides a clean, corrosion-resistant surface that suits environments where hygiene or particulate control is vital. From pharmaceutical facilities to electronics assembly areas, the non-porous surface reduces contamination risks while maintaining a professional, polished appearance.

Unlike coated steel, which can chip or oxidize over time, anodized aluminum resists damage and maintains its finish under frequent cleaning cycles. This makes MiniTec Aluminum Framing ideal for pneumatic systems operating in cleanrooms or sterile work zones, where even small particulates can compromise product quality.

Modular Segments That Simplify Future Rerouting

One of the strongest advantages of the modular aluminum framing system is its reconfigurability. Pneumatic requirements often change—new tools, stations, or sensors may require different air routes. With MiniTec’s modular design, sections of framing can be disassembled and reconfigured without cutting or welding.

This flexibility shortens downtime during system modifications. Engineers can adapt line paths to new layouts while reusing the same framing material. That level of adjustability helps manufacturers stay efficient as production needs evolve, supporting sustainable investment in long-lasting framing infrastructure.

Tight Connection Joints That Limit Vibration Transfer

Pneumatic lines are sensitive to vibration, which can affect seal integrity and flow stability. MiniTec Aluminum Framing uses tight, precision-fit joints that limit vibration transfer between connected segments. This structural stability helps prevent wear on pneumatic fittings and tubing over time.

The tight junctions also contribute to quieter operation, particularly in high-speed assembly environments. Less vibration means fewer disruptions in air delivery and a longer lifespan for mechanical components that rely on stable pressure. These benefits make MiniTec aluminum framing material a trusted choice for dynamic systems that demand steady performance.

Uniform Frame Geometry That Supports Organized Pneumatic Layouts

Consistency in frame geometry is another hallmark of MiniTec’s system. Each profile aligns perfectly with others, creating a uniform surface for building structured, symmetrical pneumatic layouts. This precision ensures air lines follow predictable, organized paths rather than weaving irregularly around supports.

Uniformity simplifies visual inspection and system expansion. Technicians can easily map pneumatic networks and identify new routing opportunities without guesswork. Minitec Solutions provides framing materials and accessories designed to help engineers integrate pneumatic systems that remain neat, safe, and efficient throughout their operational life.
